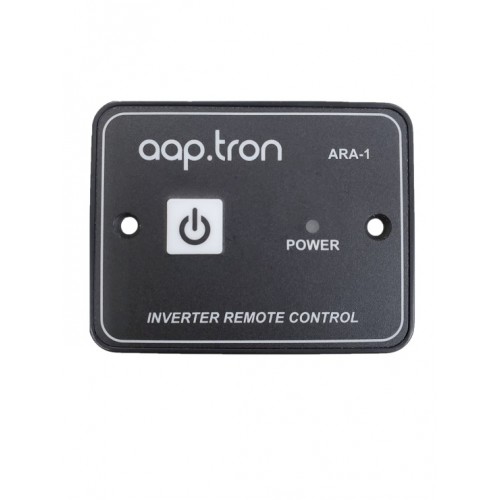

● This is a simple ON / OFF remote control.
● The wire J1 is placed inside the remote controller and it is to indicate either Return Override
   Function or Ignition Lockout Function.
   ＊  J1 jumper “Open” – Return Override Function
   ＊  J1 jumper “Short” – Ignition Lockout Function
   Please note that the default mode is OPEN.
● The wire must go with a 12 Volt 0.5A fuse with proper sizes.

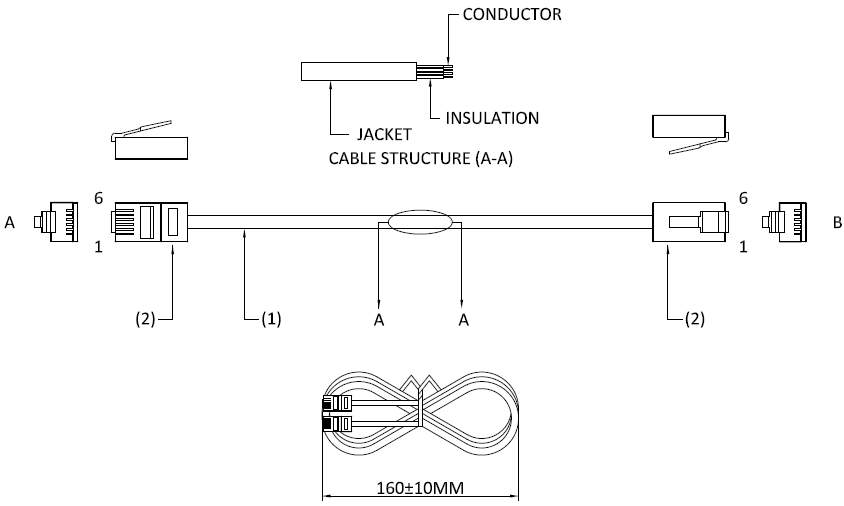

● Connect the wire RJ-11 to the remote port in rear of the panel.
   ＊  Ignition Lockout function – The Ignition lockout function is to turn the Inverter OFF when
         the auxiliary input wiring is connected to the ACC. (accessory), and 12 Volts is applied.
   ＊  Return Override Function – The Return Override Function is to turn the Inverter ON when
         the auxiliary input wiring is connected to the reverse gear Shift, and 12 Volts is applied.
